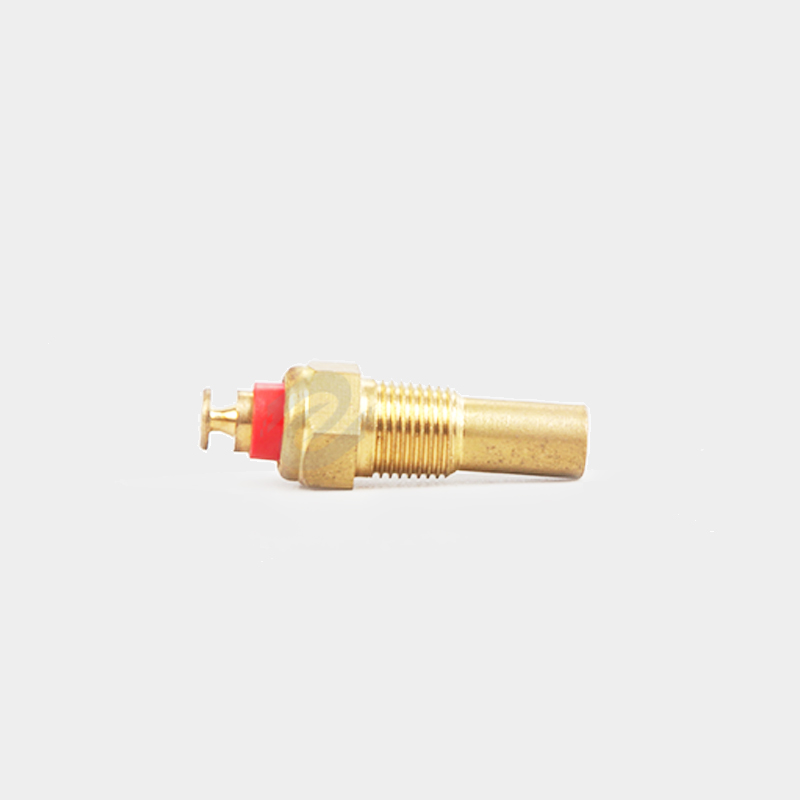

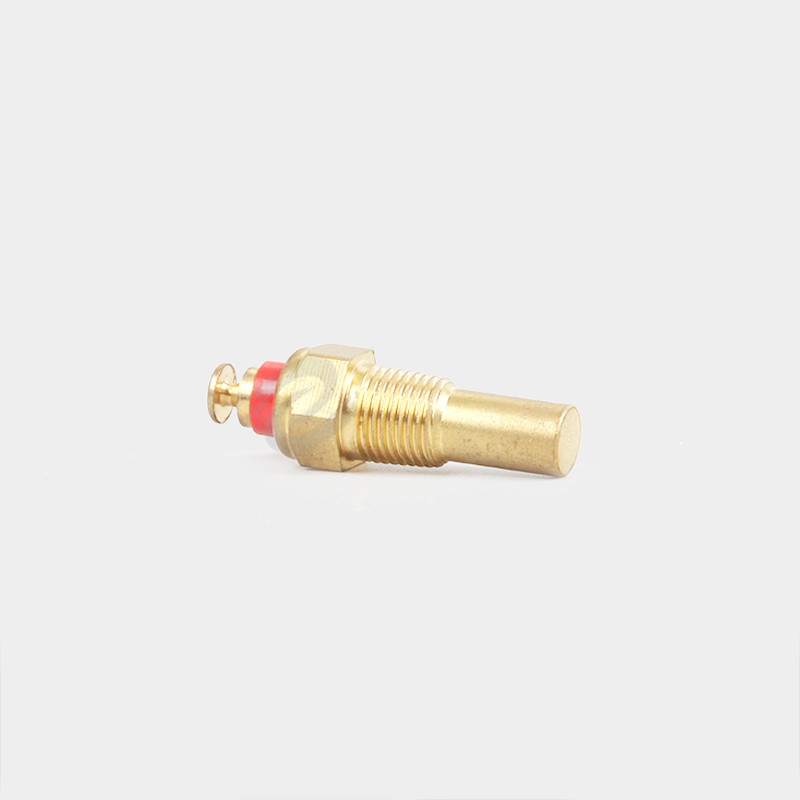

WATER TEMPERATURE SENSORS
| Quantity: | |
|---|---|
NPT1/8
Not with
Thermistor (NTC)
1 Pole
Standard Ground

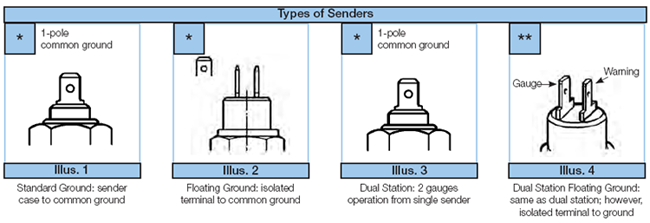

For measuring different media in connection with an electrical display unit. Some senders are earthed. Other senders are not earthed, i.e. earth is
supplied by a separate connection.Temperature senders can be fitted with an additional warning contact in order to indicate when the temperature limit has
been reached, as well as carrying out continuous measurement.
Technical Data
| Version | Thermistor (NTC) |
| Rated Voltage | 6V to 24V |
| Temperature Conditioning Time | 3 minutes minimum after switching on power supply |
| Switching Capacity | 1.2W to 3W noninductive |
| Break Point | 5°C max. below make point |
| Contacting Mode | slow-acting |

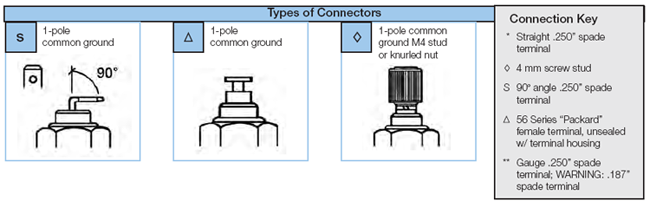

| Connector | 1 Pole |
| Application | Marine Engines,Construction Machines,Genset,Vehicles |
Installation Torqque
| Thread Size | Max Torque(Nm) | Max Torque(ft lb) |
| 1/8-27 NPTF | 10 | 7 |
| 1/4-18 NPTF | 20 | 15 |
| 3/8-18 NPTF | 30 | 22 |
| 1/2-14 NPTF | 30 | 22 |
| 5/8-18 UNF-3A | 20 | 15 |
| M10*1.0 | 10 | 7 |
| M12*1.5 | 15 | 11 |
| M14*1.5 | 20 | 15 |
| M16*1.5 | 30 | 22 |
| M18*1.5 | 30 | 22 |
