SPEEDOMETER SENSORS
| Quantity: | |
|---|---|
M18*1.5
Not with
Spring Type
4 Pole
Standard Ground

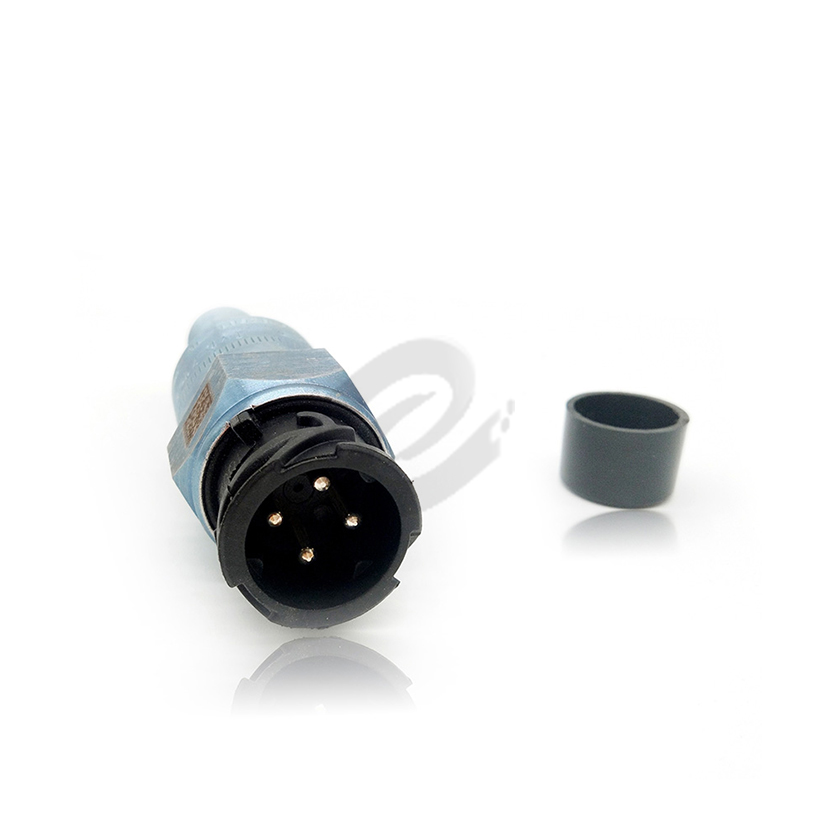

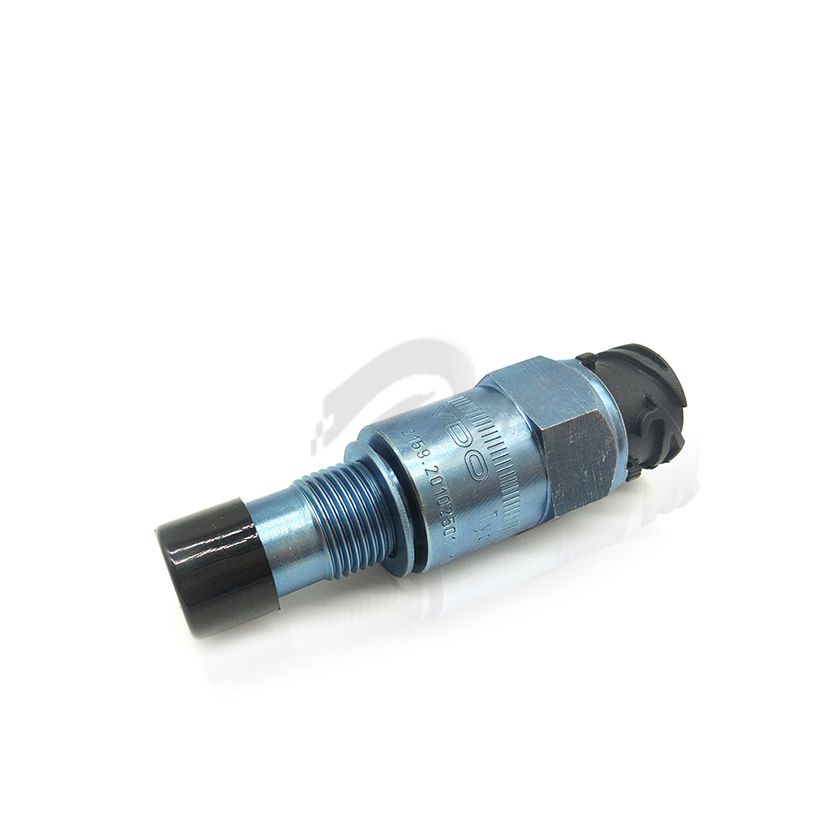

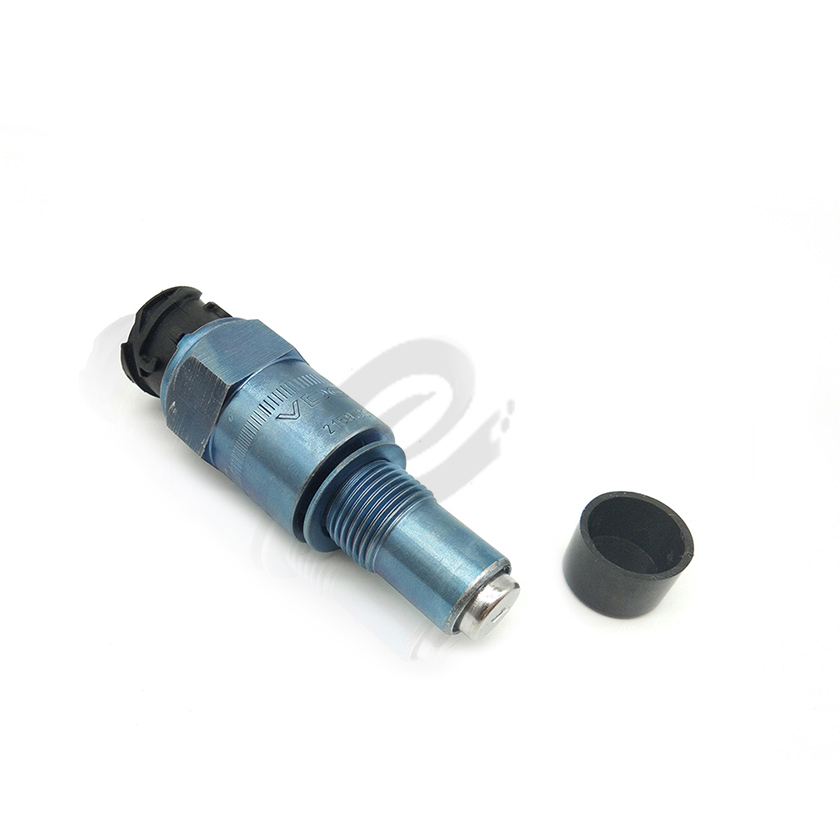

VDO odometer sensor for vehicles such as construction vehicles, buses, excavators, etc, the Sender Unit, integrated in the gearbox, transfers the number of revolutions of a gearwheel into electrical pulses. The revolutions are captured by means of a Hall IC. The pulses supplied by the Hall IC are used by tachographs and on-board computers for capturing the distance covered and the road speed.
| Model | 2159 2010 2501 |
| Output | Double Pulse（Inverted） |
| Operating Voltage | 8-36V |
| Connection Thread | M18 x 1.5 |
| Segment Lenght | 35 mm |
| Plug Shap | Round |
| Application | Bus, Stery, Volvo |
● Touch-sensitive measuring procedure (Hall IC)
● Integrated in the gearbox
● Static measuring (zero-speed recognition)
● Double pulse (inverted)
● Can be sealed
● Can be directly connected to the vehicle electric system
VDO odometer sensor for vehicles such as construction vehicles, buses, excavators, etc, the Sender Unit, integrated in the gearbox, transfers the number of revolutions of a gearwheel into electrical pulses. The revolutions are captured by means of a Hall IC. The pulses supplied by the Hall IC are used by tachographs and on-board computers for capturing the distance covered and the road speed.
| Model | 2159 2010 2501 |
| Output | Double Pulse（Inverted） |
| Operating Voltage | 8-36V |
| Connection Thread | M18 x 1.5 |
| Segment Lenght | 35 mm |
| Plug Shap | Round |
| Application | Bus, Stery, Volvo |
● Touch-sensitive measuring procedure (Hall IC)
● Integrated in the gearbox
● Static measuring (zero-speed recognition)
● Double pulse (inverted)
● Can be sealed
● Can be directly connected to the vehicle electric system
