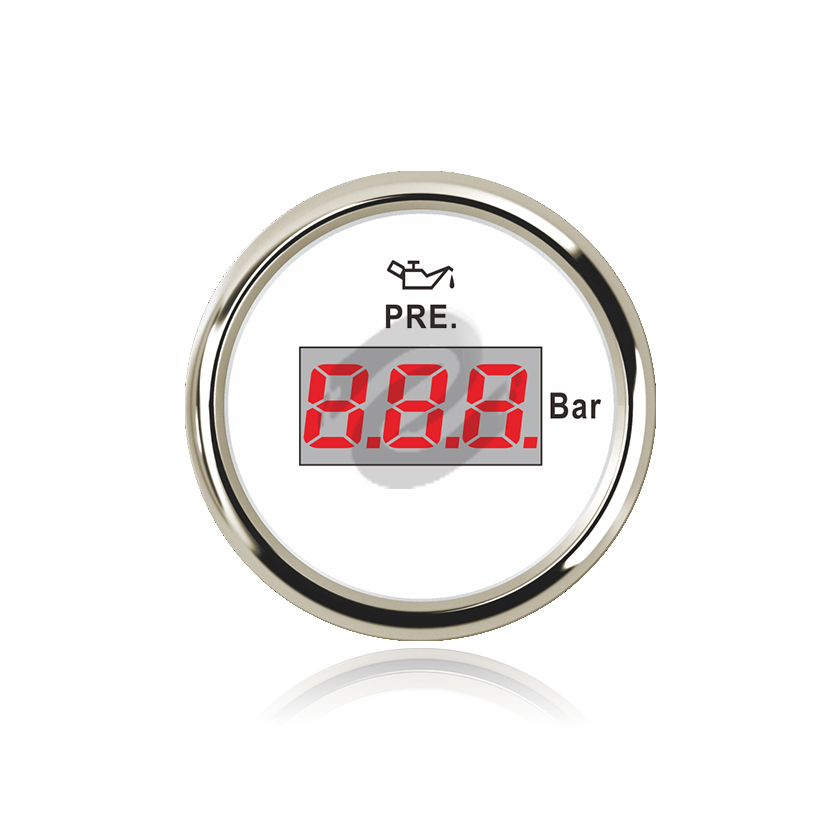

OIL PRESSURE GAUGES
| Quantity: | |
|---|---|
52 mm Gauges
ABS
Marine engines Construction machines Gensets Vehicles
9-32V
With
Digital
The gauge is suitable for ships, vehicles and generator sets. The specification of the gauge based on the sensors. The sensing device changes its resistance value according to the state of the controlling object.
Frame material: 316L stainless steel
Mounting hole diameter: 52 mm
Working voltage: 9-32V
Running current: ≤60ma
Working temperature: -30~+75°C
Storage temperature: -40~+85°C
● Protection class is IP67, the entire case is completely waterproof
● Excellent antifogging function
● 316 Stainless steel bezel with curved glass
● Standard red backlight
● Power supply has reverse connection protection, energy saving and environmental protection
The gauge is suitable for ships, vehicles and generator sets. The specification of the gauge based on the sensors. The sensing device changes its resistance value according to the state of the controlling object.
Frame material: 316L stainless steel
Mounting hole diameter: 52 mm
Working voltage: 9-32V
Running current: ≤60ma
Working temperature: -30~+75°C
Storage temperature: -40~+85°C
● Protection class is IP67, the entire case is completely waterproof
● Excellent antifogging function
● 316 Stainless steel bezel with curved glass
● Standard red backlight
● Power supply has reverse connection protection, energy saving and environmental protection
