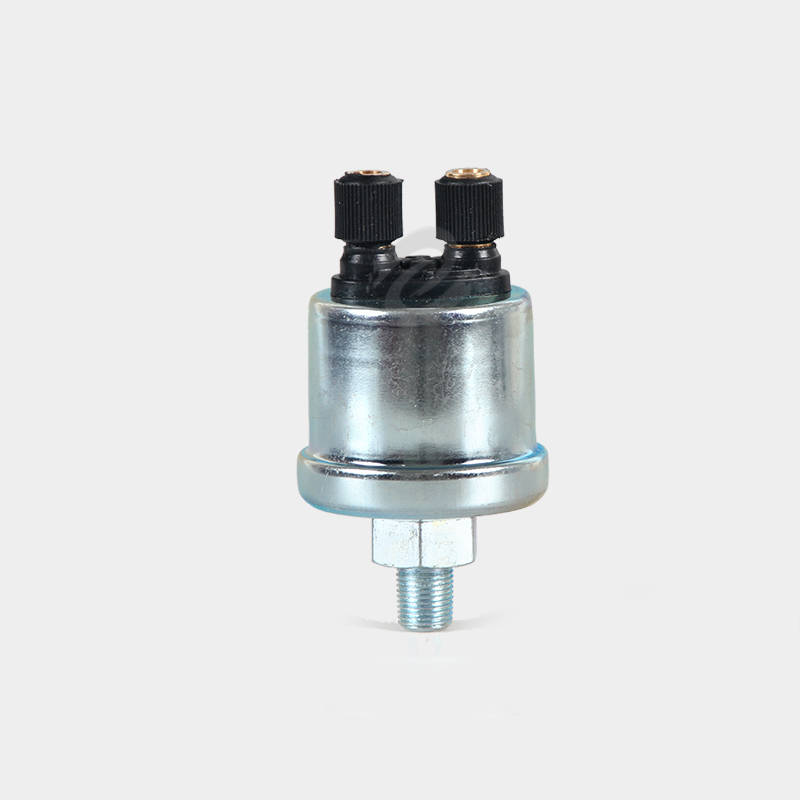

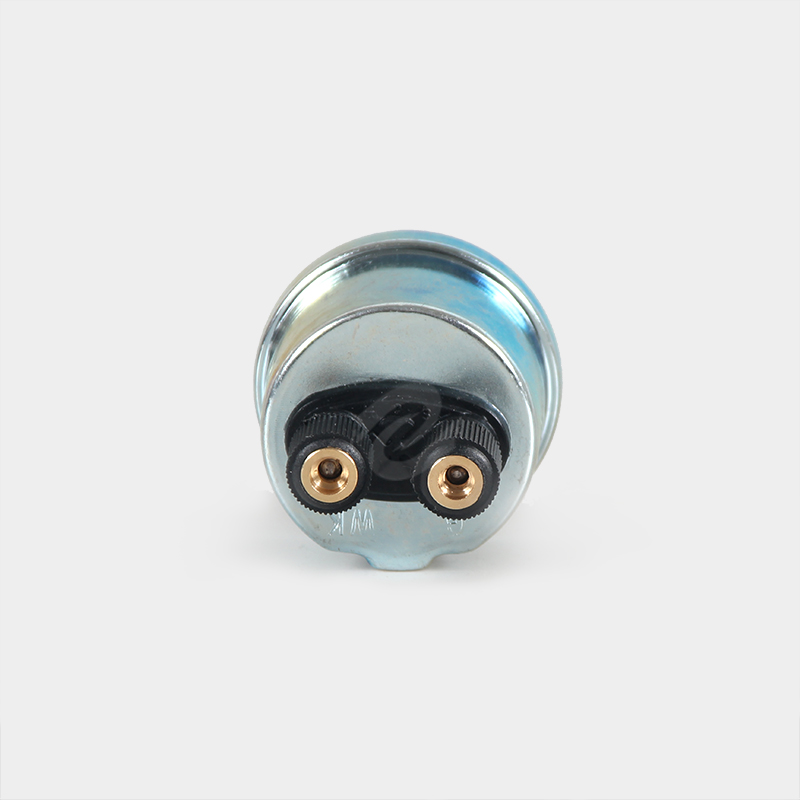

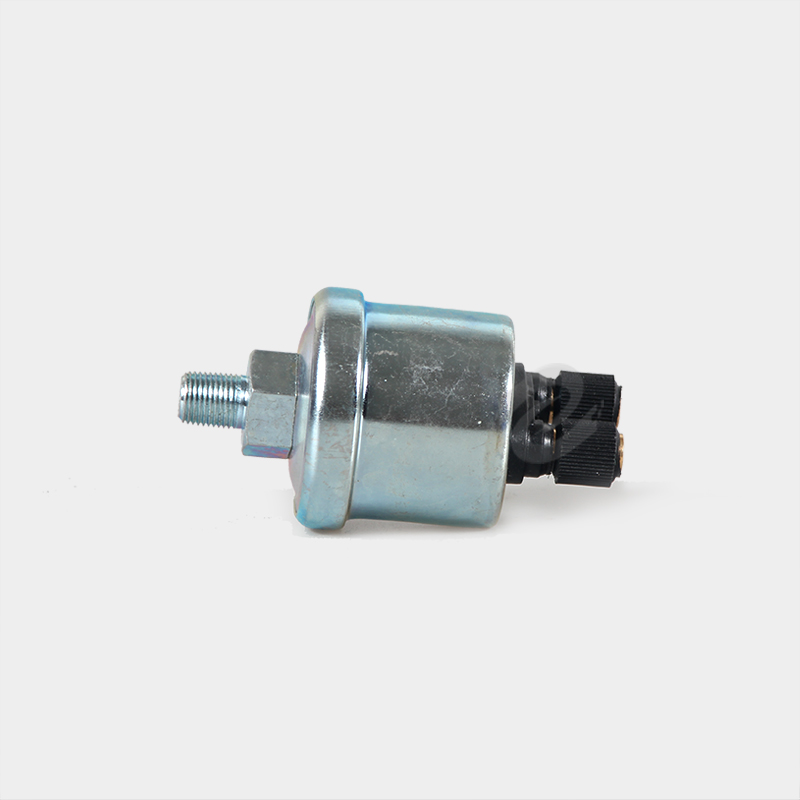

Eosin Electronic Aem Oil Pressure Sensor for Diesel Generator

OIL PRESSURE SENSORS

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • With

  • Spring Type

  • 2 Pole

  • Standard Ground

Product Description


Eosin Spare Parts For Diesel Generator Oil Pressure Sensor

For measuring different media in connection with an electrical display unit. Some senders are earthed. Other senders are not earthed, i.e. earth is

supplied by a separate connection.Temperature senders can be fitted with an additional warning contact in order to indicate when the temperature limit has

been reached, as well as carrying out continuous measurement.

Technical Data

Version   Spring Type
Measuring Range   0-5 Bar
Rated Voltage 6V to 24V
Warning Contact Close As Pressure Falls
Switching Capacity Of Warning Contact 5 W MAX, Non inductive
Operating Temperature -25°C To +100°C
Resistance Range 10 Ω to184 Ω
Connector 2 Pole
Application Marine,Construction Machines,Genset,Vehicles

Standard Ground With Warning Contact

Installation Torque

           Thread Size                  Max Torque(Nm)              Max Torque(Ft lb)
           1/8-27 NPTF                        30                     22
           1/4-18 NPTF                      60                     44
           3/8-18 NPTF                      60                     44
              M10*1.0                      30                     22
              M12*1.0                      40                     29
              M14*1.5                      60                     44
              M16*1.5                      80                     59
              M18*1.5                     100                     74
